Wiring a switch plug combo

These devices combine two functions. Correctly installed, they're just as safe as two individual switches. Combination switches are always installed with through-switch wiring and never with end-line wiring. That means two or three cables enter the box.

Does the black wire go to L1 or L2?

Function	label	Color, common
Line, single phase	L	black or red (2nd hot)
Line, 3-phase	L1	black
Line, 3-phase	L2	red
Line, 3-phase	L3	blue

Can I tap into a light switch for power?

If you need to provide power to an outlet or another switch, you can tap into either the live wire from the panel on the existing wall switch, or the switched wire, should you desire that the new element be controlled by the switch.

How do you wire a GFCI switch combo?

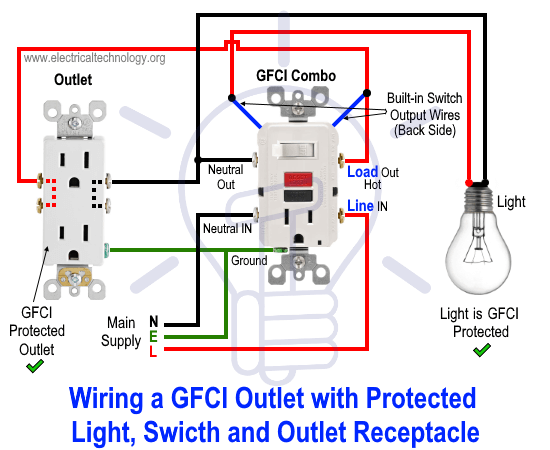

Wiring a Switched GFCI Combo Outlet To do this, simply connect the upper wire (there are two builtin wires on the back side of GFCI) to the line terminal of GFCI while the second wire should be wired to the incoming line (phase, live or hot) wire.

What is a switch controlled outlet?

What is a switched outlet? A switched outlet is an outlet in your house controlled by a light switch. Turn the light switch on, and the power to the outlet is on, turn it off, and the power is off.

How do you wire a switch plug?

So that's sending power to the switch. The other black line that is twisted in here is going over to

Which wire is hot on 3 prong plug?

What wires go on a three prong plug? The left slot is "neutral" and the associated white wire should be connected to the silver screw. The right slot is "hot" and the associated black wire should be connected to the brass screw. The green "grounding" wire should be connected to the green screw.

What Colour goes to L1 and L2?

Live wire colour Nowadays, the standard indicates that, in single-circuit installations, the colour brown should be used. This cable is labelled as L. This colour also identifies the first live cable (L1) in a three-circuit installation, the following cables being black (L2) and grey (L3).

What wires go into L1 l2 and com?

The faceplate of a single, one-way switch has two terminals: "L1" is the terminal to which the neutral core wire is attached - the blue wire (traditionally black, before the change). "COM" or "Common" is the terminal to which the live core wire is attached - this is the brown wire (formerly red).

How do I keep an outlet hot all the time?

For the outlet to be a permanently on, non-switch circuit, you need to bypass the switch. As @JimmyFix-It has said, you need to tie the Red wire and the Black Wires (Live) together. That Red wire goes to the Outlets. The White wire provides the Neutral return from the outlet.

What does load and line mean on a GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

How do you wire a single pole switch to a receptacle?

The first installation will be wiring by common feed. So that the single pole switch. And power

Does hot wire go on top or bottom of outlet?

The black 6" wire will terminate on one of the brass-colored screws, the red one on the other brass screw, and the white one on the silver-colored screw. It is most common to put the red wire on the bottom screw, since that will make the top plug-in "hot" at all times and will be a little easier to plug things into it.

Why does my outlet have three wires?

Three-conductor wire has two hots — black and red — and a white neutral. Though normally used for three-way switching, three-conductor wire is commonly used for duplex receptacle wiring as well. For a partially switched receptacle, for example, you would break off the tab on the brass side of the receptacle.

What is the purpose of a half hot outlet?

Often, the switch goes to one of the two plugs, making it a "half-hot outlet". These outlets allow one half of the duplex to be permanently on while the other is controlled by a switch to provide it with electricity.

Can you wire an outlet from a light fixture?

Things You'll Need When remodeling an older home or adding an addition, you may want to add extra electrical outlets. Wiring from an existing power source, like a light fixture, makes sense in these cases -- you already know where to tap into the power, and it makes it easy to add a switched outlet into your house.

How are three-way switches wired?

Three-way wire(which includes red, black and white wires) runs from the switch on the left to the switch on the right, with the white wire carrying ground and the red and black wires carrying the output from terminals in the left switch. Normal sheathed cable runs from the right switch to the light.

Does it matter what wire goes where on a light switch?

What color wire goes where on a light switch? Because the switch terminals are interchangeable, it doesn't matter which wire you put on each. The key factor is that there's only one wire on each.

Can I run a GFCI outlet from a light switch?

In general, yes. GFCI outlets have LINE and LOAD terminals. You can connect several more outlets on the LOAD terminals, and they will also be protected from ground faults. You can also add a switch, though bear in mind that highly inductive loads (like a large motor) can cause nuisance tripping of the GFCI.

Why is there current when switch is off?

One possibility is that the switch is wired on the neutral side and there is a ground fault between the switch and the outlet. When the switch is on, you get full voltage, but when the switch is off, current flows from hot, through the switch, and into the high-resistance ground fault.
