4017 Pinout
4017 pinout

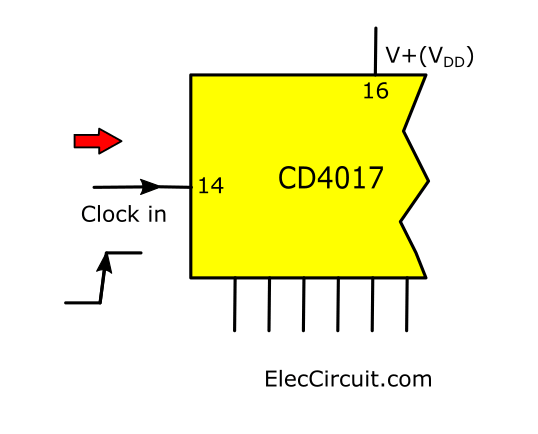

Whenever a clock pulse is received at the clock input of the IC 4017 counter, the counter increments the count and activates the corresponding output PIN. When the count is zero, PIN-3 is HIGH, which means LED-1 will be ON and all the other LEDs are OFF.
How do I make a 4017 IC?
CIRCUIT DESCRIPTION
- pin 16 to positive rail of breadboard.
- pin 15 of IC4017 to pin 5 of IC4017.
- pin 13 of IC4017 to pin 8 of IC4017 then it goes to negative rail.
- connect 5 led with their cathode to negative rail and anode to 1,2,3,4, & 7 pins of IC 4017.
What type of IC is 4017?
IC 4017 is a digital counter plus decoder circuit. This pin goes high after the IC counts from 1 to 10. This is used as carry while counting. The IC can work from 3V to 15V, but normally powered with +5V to the Vdd/Vcc pin and the Ground/Vss pin is connected to ground.
How do I check my 4017?
Let's get started,
- Step 1: Take All Components As Shown Below. Components required -
- Step 2: Circuit Diagram. This picture is the scematic of this project.
- Step 3: Short Pins of IC. ...
- Step 4: Connect Buzzer. ...
- Step 5: Connect LED. ...
- Step 6: Connect Antenna. ...
- Step 7: Connect Battery Clipper Wire. ...
- Step 8: Connect Battery.
How do you cascade 4017?
The pin number three of first ic to the pin number 15 of second ic then pin number three of second
What is enable in 4017 IC?
Enable pin/Clock Inhibit(Pin 13) Enable pin enables the CD4017 IC. IC is enabled when the pin is active low. In order to disable or switch off the IC,this pin should be connected to active high input.
How do you make an LED chaser without IC?
How to Make Best LED Chaser Circuit Without IC
- Step 1: These Components Required to Make This Project.
- Step 2: Connect Emmiter of Transistors. ...
- Step 3: Connect 100uf Capacitors. ...
- Step 4: Connect +ve Pin of 3rd Capacitor. ...
- Step 5: Connect 560 Ohm Resistor. ...
- Step 6: Connect 10K Resistors.
How do you make a clock signal circuit?
Clock signal with a tone generator
- Set the generator to Sweep.
- Un-mute and set the generator's level to 0dB.
- Set the Start Frequency to 1000Hz and the Stop Frequency to 2000Hz.
- Set the Frequency Increments to 1 Octave.
- Set the Increment Time to the desired clock pulse speed, in milliseconds.
What is LED chaser circuit?
LED Chaser Circuit is a circuit in which the LEDs lights one by one for a period of time and the cycle repeats giving the running light appearance.
What is LM358 IC?
LM358 IC is a dual operational amplifier integrated circuit with two Op-Amp powered by a common power supply. It consists of two independent compensated operational amplifiers with low power and high gain frequency. LM358 is specially designed to operate from a single supply over a wide range of voltage.
Which IC is used in digital clock?
The LSI clock chip forms the heart of modern digital timepieces. These digital clock chips are made as monolithic MOS ICs. Many a times, the MOS LSI chip, or die, is mounted directly on the PC board of a clock module. The tiny silicon die is sealed under an epoxy coating.
What is an IC 4017 decade counter?
The 4017 Decade counter is a device that counts clock pulses. It is called a decade counter because it has 10 outputs (Q0 to Q9) and so it can count 10 clock pulses before starting again. This is a very simple counter that is easy to understand and straightforward to use.
What is a decade counter IC?
A decade counter is very common in today's electronics. Most commonly available as IC CD7490, contains multiple flip flops to convert BCD-to-decimal and is incorporated as part of larger integrated circuits. A decade counter counts in a sequence of ten and then returns back to zero after the count of nine.
What is enable pin in IC?
The enable pin of ON Semiconductor eFuses provides a number of features. With all eFuses, a transistor may be used to force the pin low to disable the output. In addition, it may be left floating if no control of the enable pin is required.
What is the output from pin 15?
Using Pin#15 to Reduce the Number of Output Sequence As we learned above, there are 10 outputs in the pinout order of 3, 2, 4, 7, 10, 1, 5, 6, 9, 11.
What is inhibit clock?
Clocking is inhibited when either of the clock inputs are held high, holding either input low enables the other clock input. This will allow the system clock to be free running and the register stopped on command with the other clock input.
What is a counter input?
In digital logic and computing, a counter is a device which stores (and sometimes displays) the number of times a particular event or process has occurred, often in relationship to a clock. The most common type is a sequential digital logic circuit with an input line called the clock and multiple output lines.
What is a 4026?
4026 IC is a 4000 series IC. It is a CMOS seven-segment counter IC and can be operated at very low power. It is a decade counter, counts in decimal digits (0-9). It is used to display numbers on seven segment displays and it increment the number by one, when a clock pulse is applied to its PIN 1.
Can LED run without resistor?
Never Ever Connect an LED Without a Resistor, Mostly. When hooking up an LED, you are always supposed to use a current-limiting resistor to protect the LED from the full voltage.
Can you run LED lights without a relay?
The answer is yes. LED lights do not need relays to operate. Yet, doing so is not recommended. It is best to use a relay when you are unsure about switches, fuses, and wiring is of the proper size for the amperage.
