Determine the equivalent resistance

When resistors are connected one after each other this is called connecting in series. This is shown below. To calculate the total overall resistance of a number of resistors connected in this way you add up the individual resistances. This is done using the following formula: Rtotal = R1 + R2 +R3 and so on.

What is the equivalent resistance of two resistors of resistance 3 and 6 ohms?

∴Equivalent resistance, Reff = 3×63+6 = 189 = 2 Ω. Q. A battery of e.m.f. 15 V and internal resistance 3 Ω is connected to two resistors 3 Ω and 6 Ω connected in parallel.

What is the equivalent resistance of three resistors in parallel?

Likewise, if three or more resistors each with the same value are connected in parallel, then the equivalent resistance will be equal to R/n where R is the value of the resistor and n is the number of individual resistances in the combination.

What is the equivalent resistance of the series circuit?

For example, when two 6-Ω resistors are connected in series, it would be equivalent to having one 12-Ω resistor in the circuit. This is the concept of equivalent resistance in a series circuit.

What is the equivalent resistance of 2ohm 3ohm 5ohm in parallel connection?

Hence, the resistors are connected in parallel and their equivalent resistance is 0.97 ohms.

How do you find the resistance of A Class 12?

Resistance Formula is R = V I.

What is equivalent resistance in series and parallel?

The equivalent resistance is where the aggregate resistance connected either in parallel or series is calculated. Essentially, the circuit is designed either in Series or Parallel. Electrical resistance shows how much energy one needs when you move the charges/current through your devices.

What is the value of equivalent resistance in parallel?

Two identical resistors in parallel have an equivalent resistance half the value of either resistor.

What is a equivalent formula?

Equivalent equations are algebraic equations that have identical solutions or roots. Adding or subtracting the same number or expression to both sides of an equation produces an equivalent equation.

What is the equivalent resistance of 2 ohm and 2 ohm in parallel?

The resultant resistance if two 2 Ω resistors are connected in parallel is 1 Ω.

What is the equivalent resistance of two 10 ohm resistors in parallel?

Hence total resistance will be 5 ohm.

How do you find the equivalent resistance of a resistor in series?

The equivalent resistance of a set of resistors in a series connection is equal to the algebraic sum of the individual resistances.

What is the equivalent resistance of 2 ohm and 3 ohm in series?

The equivalent resistance of two resistance connected in series can be expressed as R=R1+R2. Now from the given information R=2+3=5Ω

How do you find the equivalent resistance between A and B class 12?

Their equivalent resistance will be, RAB=2r3. Q.

What is the formula of equivalent resistance R1 R2 R3?

Since the resistors R1, R2 and R3 are connected in parallel combination the potential difference across each resistor is same as the supply. Hence VAB = VR1 = VR2 = VR3.

What is the formula of resistance class 12?

Parameters	Resistance	Resistivity
Formula	R = V I	ρ = E J
SI unit	Ω	Ω.m
Symbol	R	ρ
Dependence	Dependent on the length and cross-sectional area of the conductor and temperature	Temperature

How do you find the equivalent circuit?

For a parallel circuit with three resistors, the voltage drop across each resistor equals the supply voltage. In other words, for a parallel circuit, the equivalent resistance is found by adding the reciprocals of the individual resistance values, and then taking the reciprocal of the total.

What is the equivalent resistance of the two resistors?

The equivalent resistance of two resistors connected in series is the sum of the individual resistances.

How do I calculate resistance?

R = V ÷ I Question What is the resistance of the lamp? To calculate the resistance of an electrical component, an ammeter is used to measure the current and a voltmeter to measure the potential difference. The resistance can then be calculated using Ohm's Law.

What is the value of equivalent resistance when resistance of 2 ohm and 4 ohm are connected in parallel?

So, if the two resistances 2Ω and 4Ω are connected in parallel connection then the equivalent resistance will be 1.33Ω.

7 Determine the equivalent resistance Images

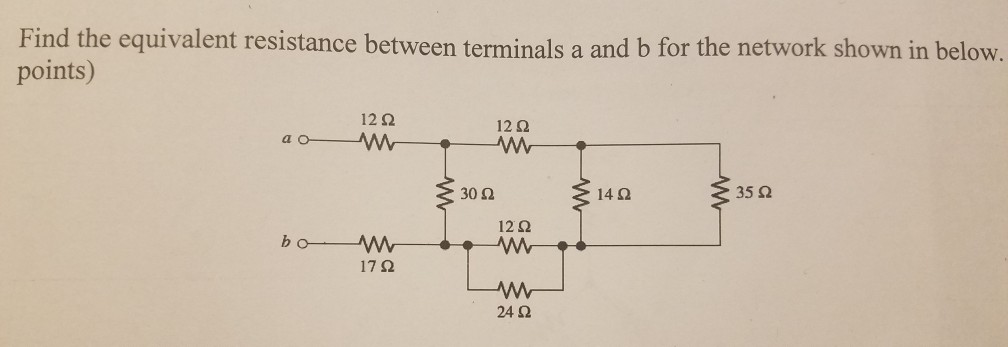

Solved Find the equivalent resistance between terminals a Cheggcom
